- Stock: 12
- Model: MB56-DIY-BOX-US
- Weight: 64.00kg
- Dimensions: 85.00cm x 61.00cm x 67.00cm
USA Stock MB56 DIY 628Ah Battery Box Kit (Cells Not Included)
This USA warehouse DIY battery enclosure is designed for builders assembling a 16S LiFePO4 battery system with 16 EVE MB56 / LF628 628Ah prismatic cells. When the cells are installed, the nominal system is approximately 51.2V 628Ah, or 32.15kWh.
Important: This listing is for the DIY battery box kit. Battery cells are not included.
Please confirm your inverter model, communication protocol, installation space and delivery ZIP code before ordering. Kit configuration may be updated by production batch, so confirm the current BMS and accessory list before payment.
Key Features
- Purpose-built enclosure for 16 EVE MB56 / LF628 628Ah LiFePO4 cells
- 16S configuration for a nominal 51.2V battery system
- Two-layer internal layout with eight cells per layer

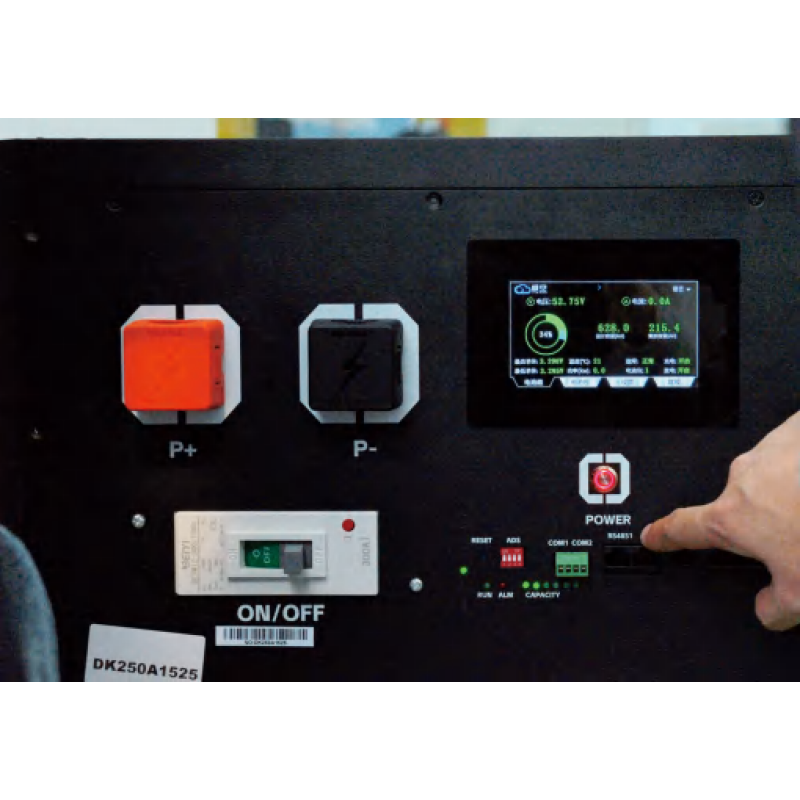

- JK PB2A16S20P V19 200A smart BMS with a 4.3-inch touch screen
- CAN, RS485 and Bluetooth communication

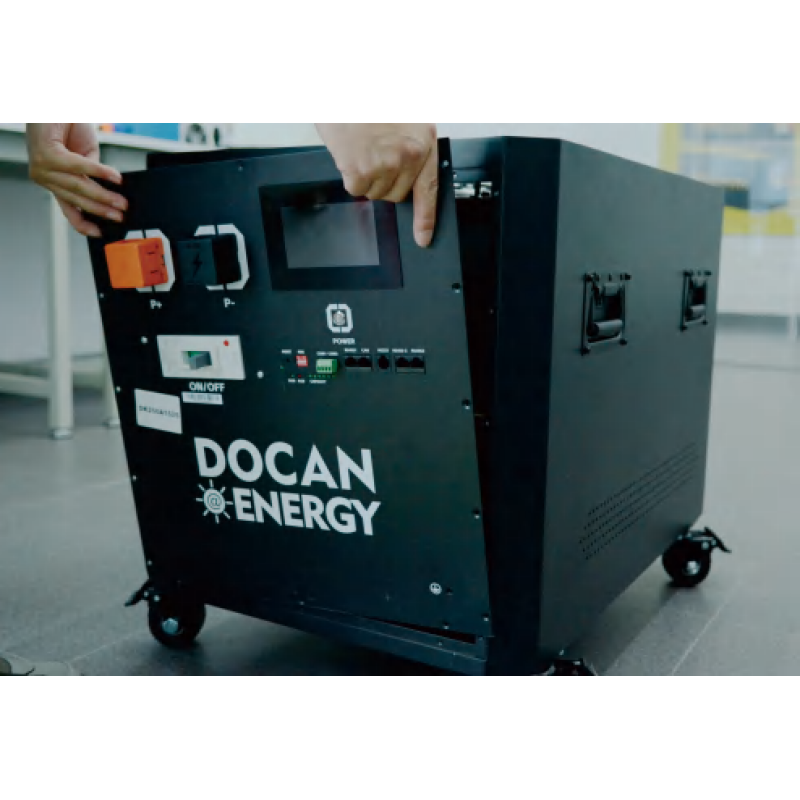

- Cold-rolled sheet metal enclosure with M8 terminal and DC breaker

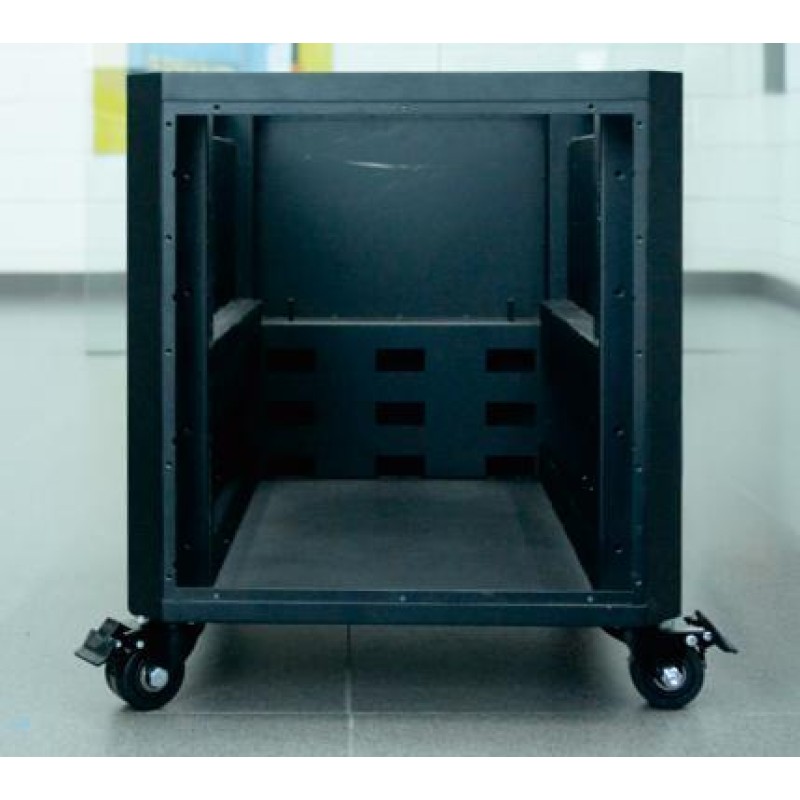

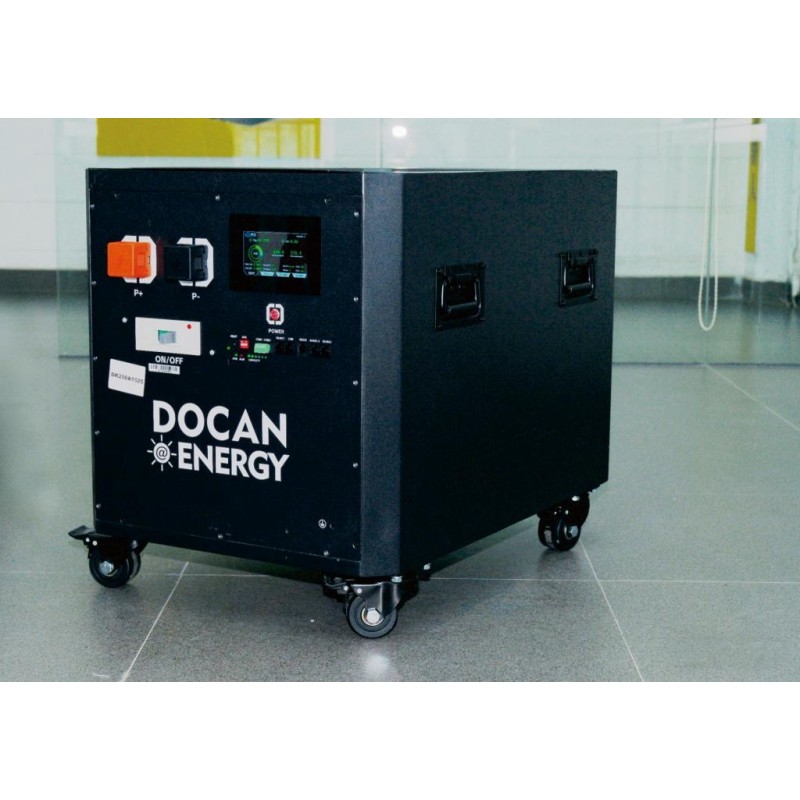

- Mobile metal enclosure with four caster wheels

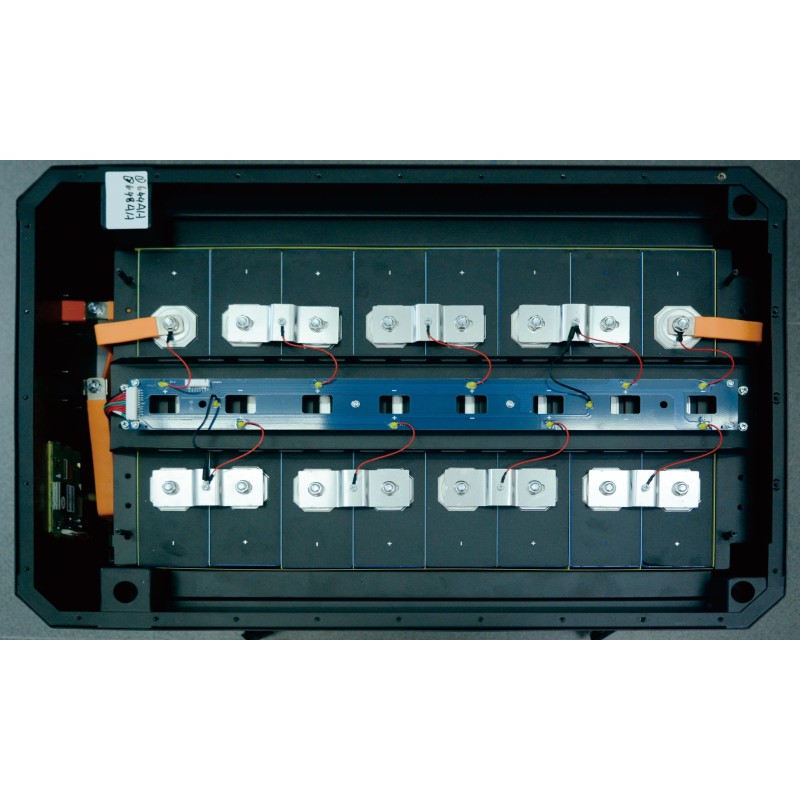

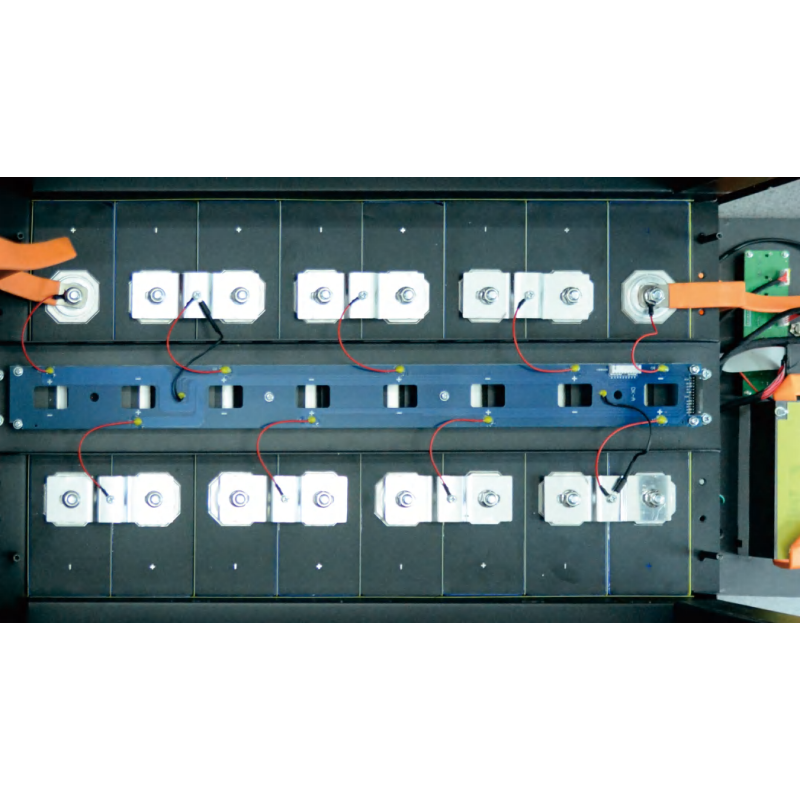

- Pre-arranged cell connection boards, sensing wires, flexible busbars and insulation parts
Compatible Cell Configuration
| Compatible cells | 16 pcs EVE MB56 / LF628 628Ah LiFePO4 cells |
| Connection | 16S1P |
| Nominal voltage | 51.2V after cells are installed |
| Nominal capacity | 628Ah after cells are installed |
| Nominal energy | Approximately 32.15kWh after cells are installed |
| BMS | JK PB2A16S20P V19 200A smart BMS |
| Display | 4.3-inch touch screen |
| Communication | CAN / RS485 / Bluetooth |
| Enclosure material | Cold-rolled sheet metal |
| Enclosure size | Approximately 742 x 490 x 583mm |
| Terminal / protection | M8 terminal and DC breaker |
| Cells included | No |
Packaging and Shipping Data
- Carton size: approximately 85 x 61 x 67cm
- Kit and accessories weight: approximately 55.7kg
- Gross packed weight: approximately 61.9kg
- Shipping calculation weight: approximately 64kg; volumetric weight approximately 76kg
Installation Notes
The completed system weighs more than 210kg after the cells are installed. Confirm the final installation position before assembly. Wear insulated gloves, keep metal tools away from exposed terminals, and do not exceed 7Nm when tightening cell terminal screws with an electric torque wrench.
Installation should be completed by a qualified person who understands high-current LiFePO4 battery systems. Record the assembly process and verify every connection before powering on.
Frequently Asked Questions
Are EVE MB56 cells included?
No. This product is the DIY enclosure kit only. The 16 EVE MB56 / LF628 cells are purchased separately.
What battery can be built with this enclosure?
With 16 compatible 628Ah cells in series, it can form a nominal 51.2V 628Ah battery system with approximately 32.15kWh of energy.
How are the cells arranged?

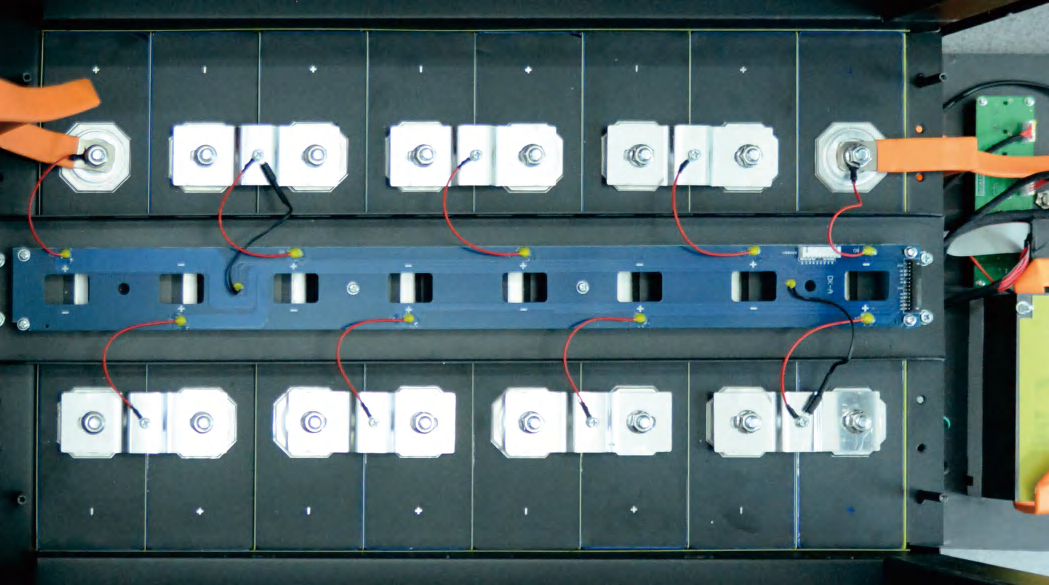

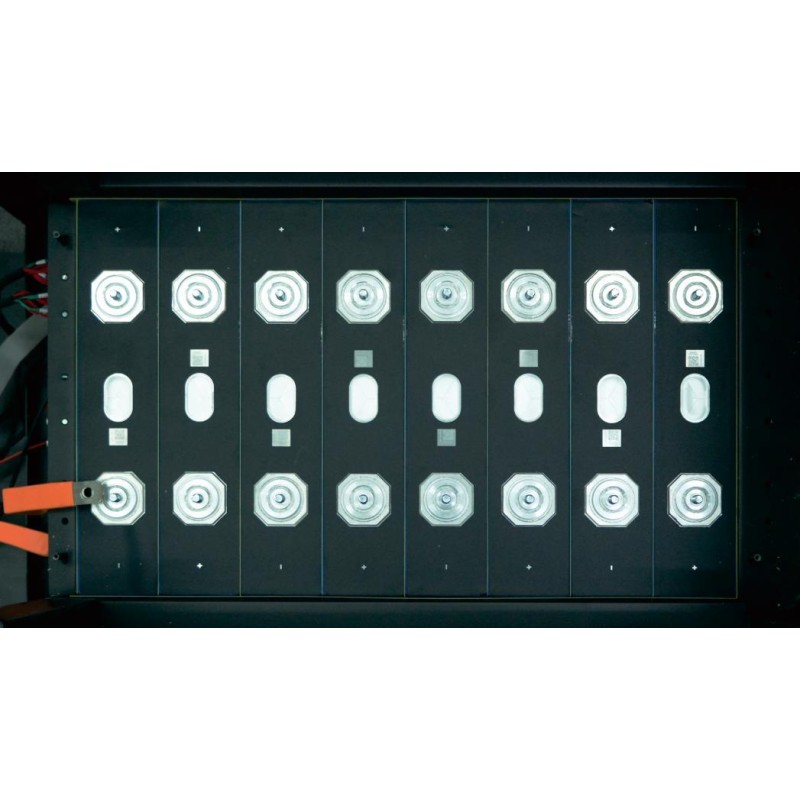

The enclosure uses a two-layer layout. Eight cells are installed in the lower section and eight cells in the upper section.
Can it communicate with my inverter?
The supplied JK BMS supports CAN, RS485 and Bluetooth. Inverter compatibility still depends on the protocol and inverter model, so send us the inverter brand and model before ordering for confirmation.
Can I order the complete assembled battery?
Yes. Contact Jenny for a complete battery pack quotation, available stock and delivery options.
Check Availability and Delivery
Send your delivery ZIP code, required quantity and inverter model before payment. We can confirm current USA warehouse availability, shipping options and the latest configuration.
