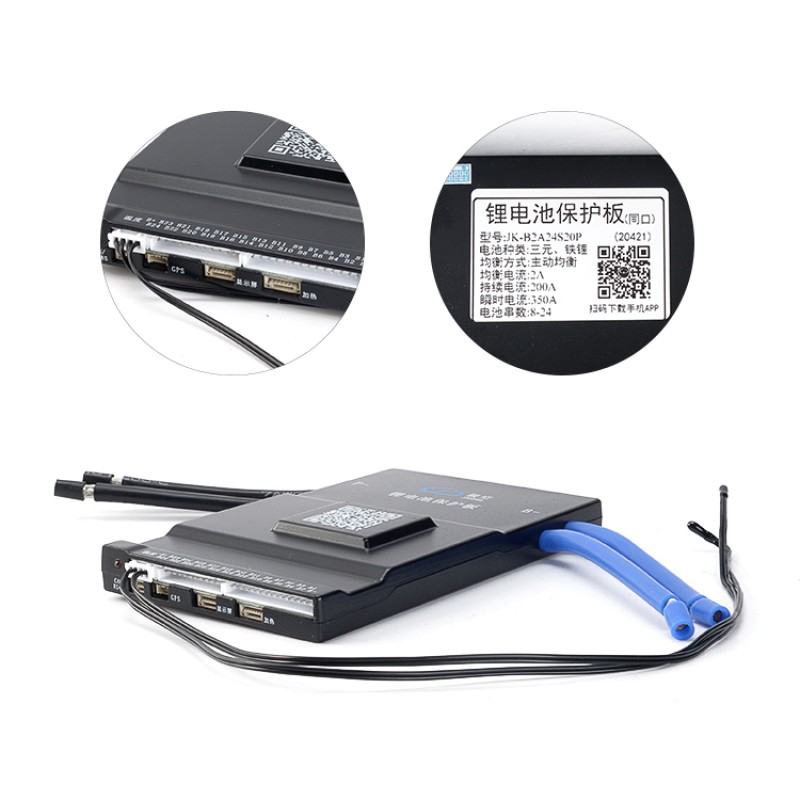

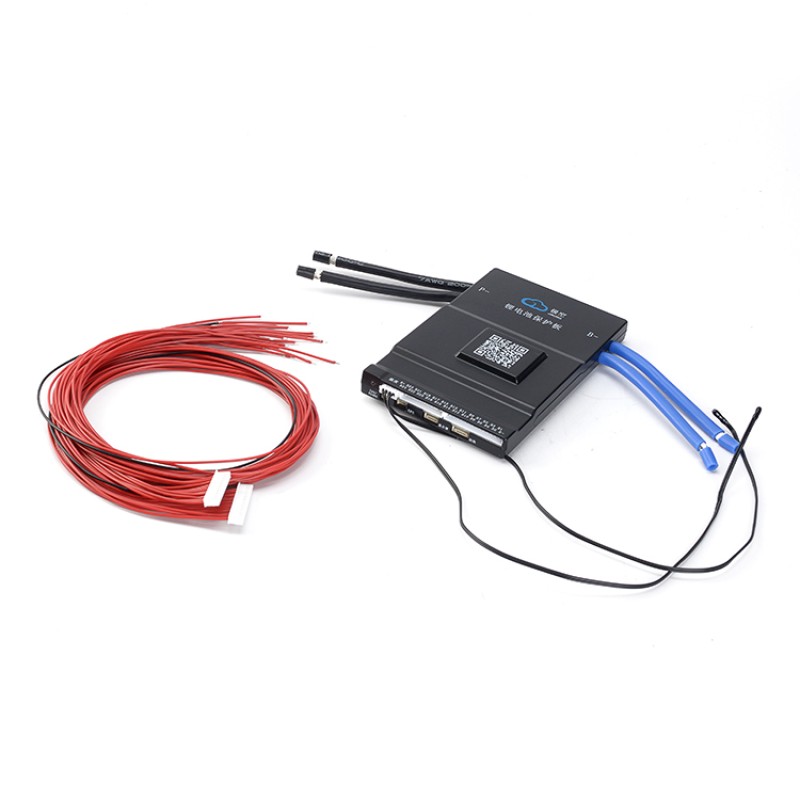

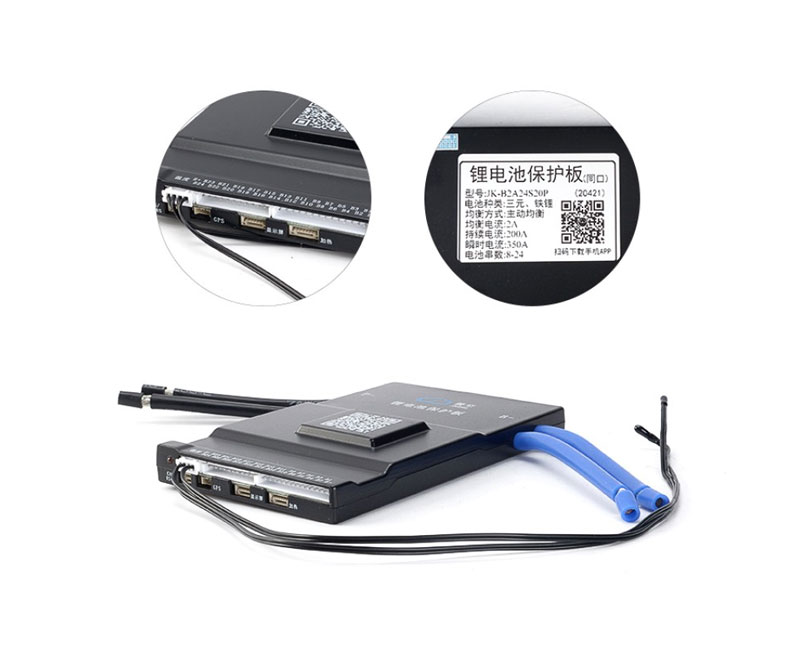

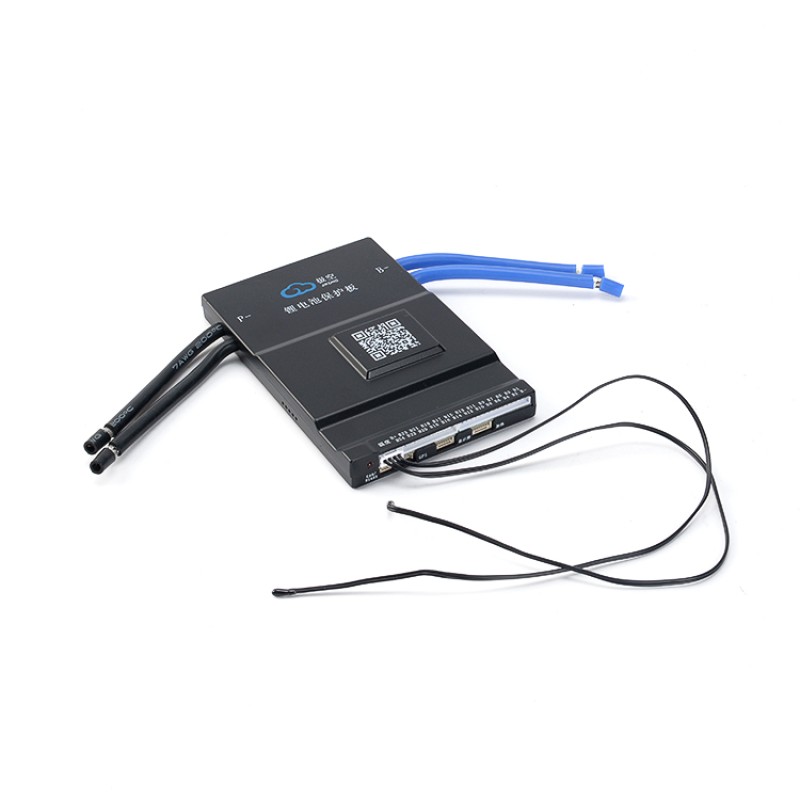

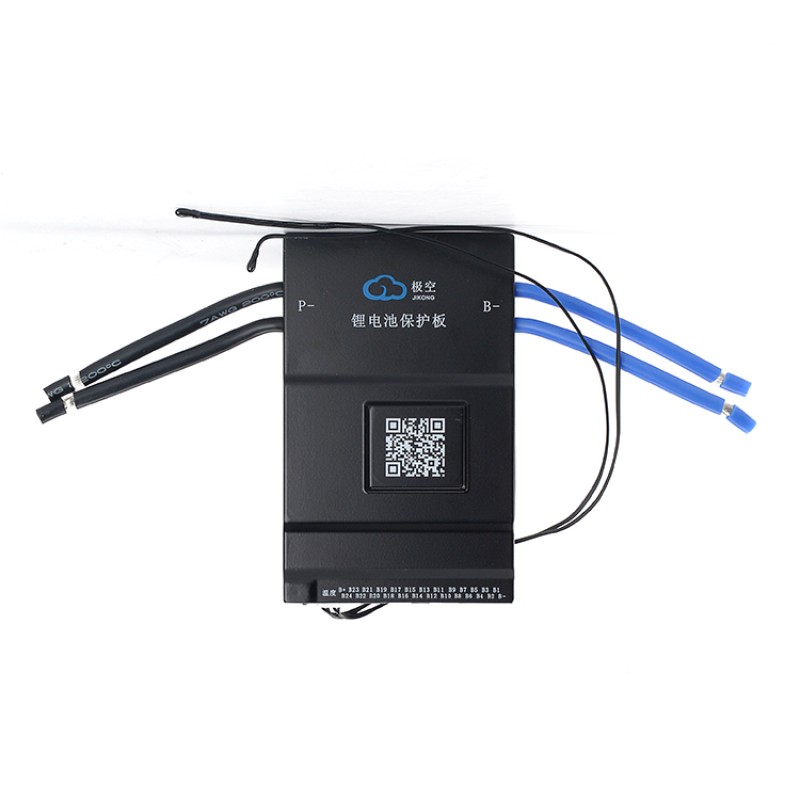

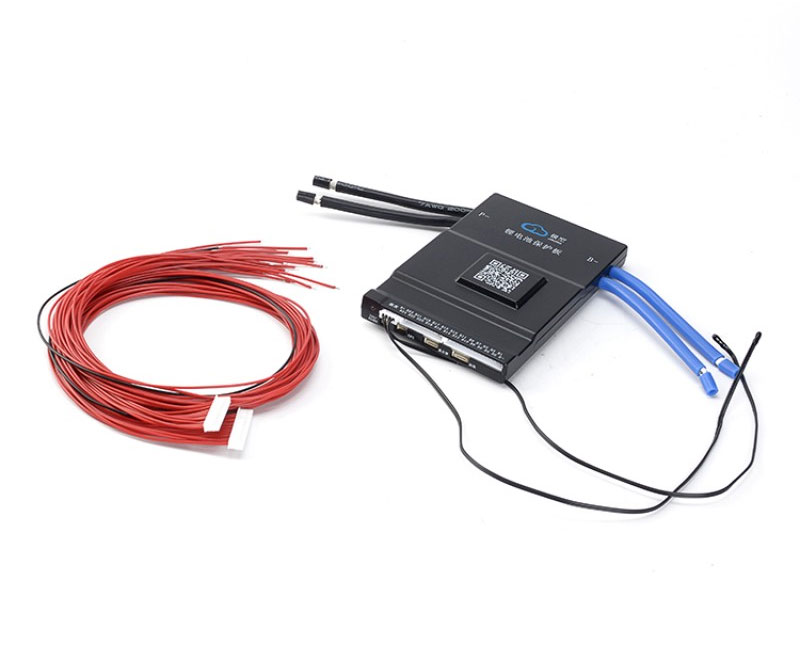

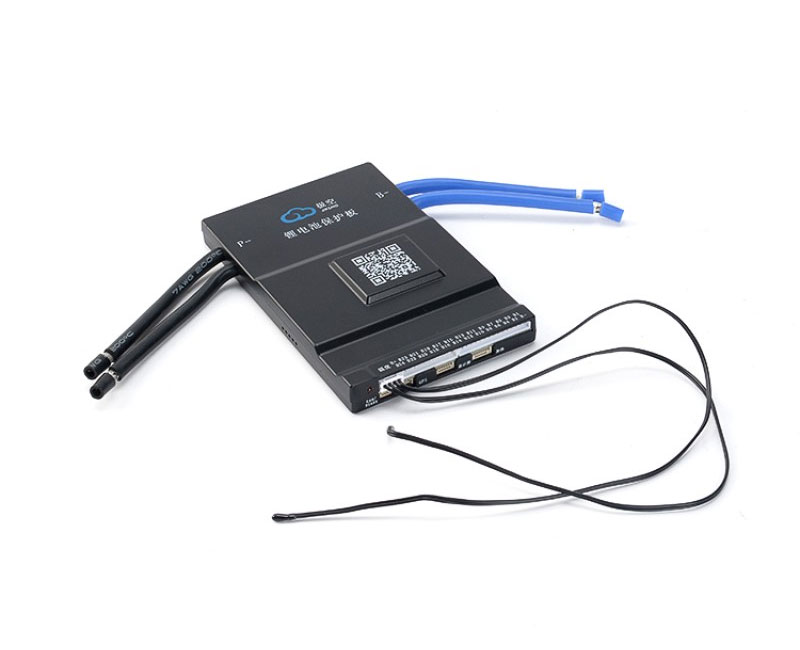

The JK-B2A24S20P Smart BMS is a cutting-edge battery management system designed to enhance the performance, safety, and longevity of lithium battery packs. Supporting 7S to 24S configurations with a robust 200A continuous current, this intelligent BMS features 2A active equalization, built-in Bluetooth for real-time monitoring, and comprehensive protection mechanisms. Ideal for applications in electric vehicles, solar energy storage, and industrial battery systems, this smart BMS ensures precise voltage detection, efficient energy management, and reliable operation under extreme conditions.
With a 2A active equalization current, this smart BMS actively balances cell voltages to maintain uniformity across the battery pack. Unlike passive balancing, active balancing transfers energy between cells, reducing waste and extending battery life, making it ideal for high-capacity lithium battery systems.
.jpg)

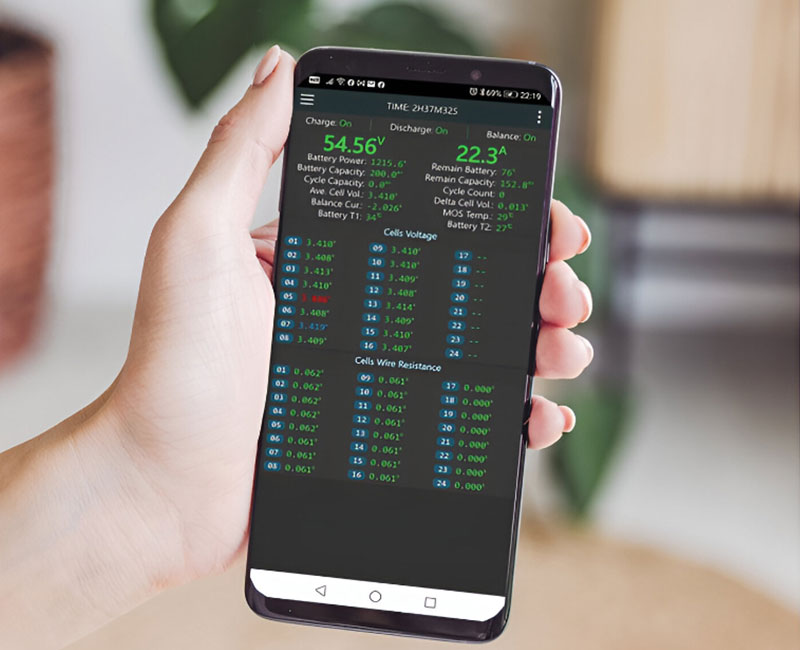

The integrated Bluetooth module allows seamless connection to Android and iOS devices, enabling users to monitor battery health, state of charge (SoC), and performance metrics in real time. This smart feature simplifies battery management and enhances user control over energy storage systems.
Equipped with short circuit protection, single-cell voltage dropout detection, and precise current sensing (error <0.5% FSR), this intelligent BMS safeguards your battery pack from overcurrent, overvoltage, and thermal issues, ensuring safe and reliable operation.
.jpg)
.jpg)
Designed to operate in extreme conditions (-40°C to 85°C), the JK-B2A24S20P BMS maintains efficiency with a low power consumption of less than 5mA (without communication) and 2mA in standby mode, making it suitable for demanding environments.
| Parameter | Details |
|---|---|
| Battery Strings | 7S to 24S |
| Continuous Current | 200A |
| Power Supply | Self-powered by battery pack |
| Single Cell Voltage Detection | 0-5V, error <10mV (typical <5mV) |
| Balance Current | 2000mA (active balancing, full state on) |
| Wiring Method | Same port |
| Short Circuit Protection | Supported |
| Bluetooth | Built-in, supports Android/iOS |
| Temperature Detection | -40°C to 125°C |
| Total Voltage Detection | 0-100V, error <0.5% FSR |
| Current Sense Shunt | -150A to 300A, error <0.5% FSR |
| SoC Estimation Accuracy | Error <8% (operating conditions) |
| Battery Remaining Capacity | Error <8% |
| Total Cycle AH | Cumulative value is half of charge/discharge |
| Operating Power Consumption | <5mA (without communication), 15mA (485/CAN) |
| Standby Power Consumption | <2mA |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 95°C |
A smart BMS (battery management system) monitors and manages lithium battery packs to ensure safety, efficiency, and longevity. The JK-B2A24S20P smart BMS provides active balancing, real-time monitoring via Bluetooth, and robust protection features, making it essential for high-performance applications like EVs and solar storage.
The JK-B2A24S20P is optimized for lithium battery packs (7S to 24S). While primarily designed for lithium-ion or LiFePO4 batteries, compatibility with other chemistries depends on voltage and configuration. Always verify specifications before use.
Active balancing redistributes energy between cells to maintain uniform voltage, unlike passive balancing, which dissipates excess energy as heat. This smart BMS’s 2A active equalization enhances efficiency, extends battery life, and improves overall performance.
Yes, the built-in Bluetooth connects to an intuitive Android/iOS app, allowing users to monitor voltage, SoC, and temperature in real time. This feature simplifies battery management and provides actionable insights for optimizing lithium battery systems.
