Large home battery systems are not small plug-and-play boxes. Before buying a high-capacity battery such as the Docan Panda 48kWh, customers should think carefully about delivery, moving, installation space and wiring.

The Panda 48kWh battery pack is designed for large residential ESS and off-grid storage projects. Because it is a heavy battery system, safe handling is part of the project plan.

1. Check the Battery Weight Before Delivery

A large 48kWh LiFePO4 battery pack can weigh hundreds of kilograms. For Panda 48kWh, customers should prepare for a heavy cabinet-style battery system.

Before delivery, confirm whether the site has enough access for unloading and moving. Do not assume that two people can manually carry a battery of this size.

For safety, customers should plan proper equipment and enough space before the battery arrives.

2. Confirm Truck Access and Unloading Conditions

Before ordering, check whether the delivery address can receive a large palletized battery.

Important questions include:

  • Can a delivery truck reach the address?
  • Is liftgate service needed?
  • Is there a forklift, pallet jack or loading dock available?
  • Is the ground flat enough to move the battery safely?
  • Are there stairs, narrow doors, gravel, slopes or uneven paths?

These details matter because delivery failure or unsafe unloading can create extra cost and risk.

3. Plan the Moving Path Before the Battery Arrives

Do not wait until the battery is delivered to decide where it should go.

Measure the moving path in advance. Check door width, gate width, turning space, floor surface, ramp angle and the final installation position.

If the battery must go through a garage, utility room or workshop, make sure there is enough clearance for the battery body, handles, pallet jack or moving equipment.

4. Choose a Suitable Installation Location

A large LiFePO4 battery should be installed in a stable, dry and ventilated location. The area should be protected from direct rain, flooding, excessive heat and mechanical damage.

Common locations include garages, utility rooms, workshops and dedicated energy storage rooms.

The floor should be strong and flat. If the installation site is upstairs, on a wooden platform or in a weak structure, the floor load should be checked by a qualified professional.

5. Leave Enough Space for Wiring and Service

Large battery systems need space around them. Do not push the battery into a tight corner where cables, breaker, screen, communication port or service access become difficult.

Leave room for DC cable connection, breaker operation, BMS screen viewing, communication cable routing, ventilation, inspection and future maintenance.

A clean installation is not only better looking. It also makes troubleshooting easier.

6. Do Not Connect Before Checking the System Design

Before connecting the battery to the inverter, check the full system design.

Confirm inverter voltage range, charge voltage, discharge voltage, maximum current, cable size, breaker rating, polarity, grounding and communication method.

If the system uses CAN or RS485 communication, confirm the correct protocol and inverter setting before commissioning.

7. High Current Requires Proper Cables and Protection

A 48kWh battery can be used in high-power systems, but high current requires careful design.

The cable size, terminals, busbars, DC breaker and inverter input must all match the expected current. Undersized cables or loose terminals can cause heat and reliability problems.

If the installer is not experienced with high-current DC battery systems, use a qualified solar or electrical professional.

8. What to Tell Docan Before Ordering

To avoid delivery and installation problems, send the following details before ordering:

  • Country, state and ZIP code
  • Whether liftgate service is needed
  • Installation location and access conditions
  • Inverter brand and model
  • Expected charge and discharge current
  • Whether you need CAN, RS485 or user-defined settings

This helps Docan confirm warehouse availability, delivery route and system compatibility.

Recommended Buying Advice

If you are planning to buy a large home battery bank, do not only compare capacity and price. Also check whether you can receive, move and install the battery safely.

For customers with a suitable garage, utility room or energy storage area, Panda 48kWh can be a practical integrated LiFePO4 battery solution for residential ESS and off-grid projects.

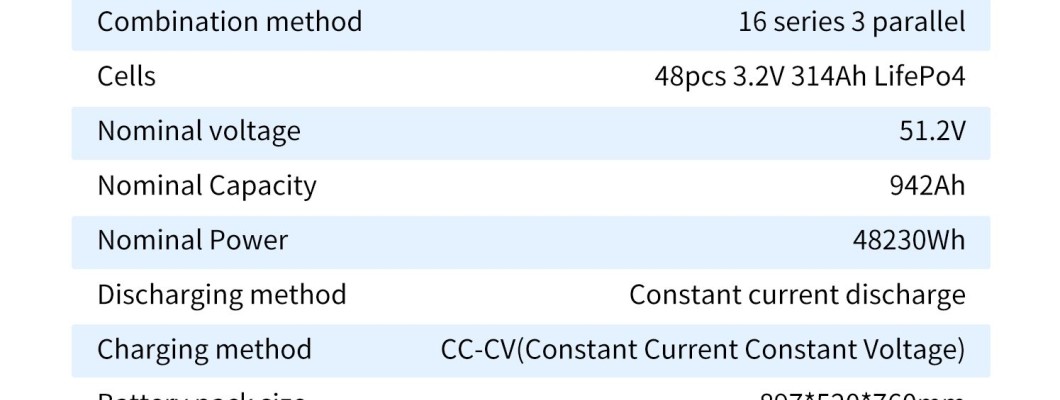

Product link: Docan Panda 51.2V 942Ah 48kWh LiFePO4 Battery Pack

Conclusion

A large 48kWh home battery can provide strong energy storage capacity, but safe delivery and installation must be planned before purchase.

Check access, moving equipment, floor load, installation space, cables, breaker and inverter compatibility first.
