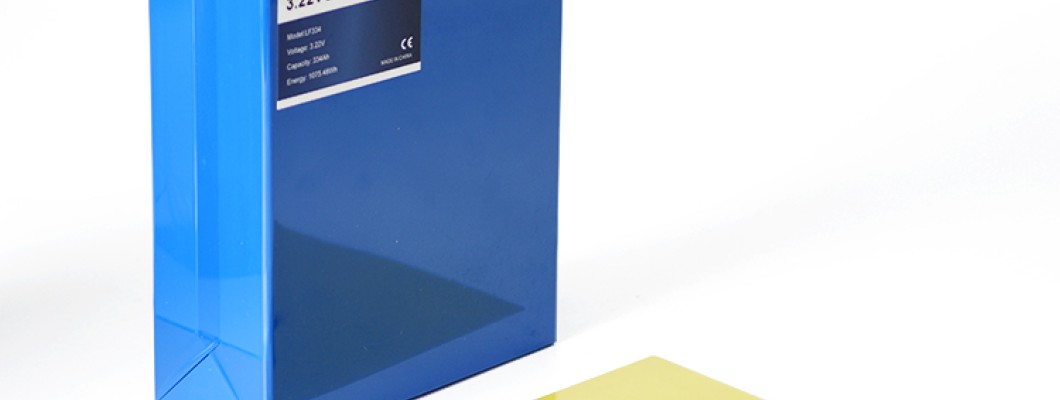

EVE LF334 334Ah vs EVE MB31 314Ah: Which Cell Fits a 16S Home ESS?

When planning a 16-cell LiFePO4 battery for a home energy storage system, buyers often compare cells by capacity first. The EVE LF334 has a nominal capacity of 334Ah, while the EVE MB31 is rated at 314Ah. The capacity difference matters, but it is not the only factor that determines whether a cell is suitable for an existing DIY battery box or a new 51.2V ESS project.

Physical dimensions, terminal layout, busbar compatibility, compression, BMS settings and the condition of the cells must all be checked before ordering. This guide explains the main differences and the questions a buyer should answer before choosing between LF334 and MB31 cells.

Quick answer: LF334 or MB31?

Choose the LF334 when you are designing a new battery and want more nominal energy from one 16S pack, provided that the enclosure, busbars and compression system fit the LF334 correctly.

Choose the MB31 when your existing battery box and hardware are already designed for MB31 dimensions or when the available MB31 terminal configuration better matches your project.

Neither cell should be treated as an automatic drop-in replacement for the other. Always verify the current cell drawing, terminal position and battery-box design before purchasing.

LF334 vs MB31: key published specifications

Specifications and available terminal configurations can change by batch. Confirm the current cell drawing, test report and order configuration before payment.

How much more energy does a 16S LF334 battery provide?

A 16S pack built with 334Ah cells has approximately 17.10kWh of nominal energy:

3.2V x 334Ah x 16 = 17.10kWh

A 16S pack built with 314Ah cells has approximately 16.08kWh of nominal energy:

3.2V x 314Ah x 16 = 16.08kWh

The LF334 configuration therefore provides about 1.02kWh more nominal energy, or roughly 6.4% more than a 314Ah configuration. Actual usable energy will still depend on the BMS limits, inverter settings, operating temperature, state-of-charge window and system losses.

Can LF334 replace MB31 in the same battery box?

Do not assume that two large-format prismatic cells will fit the same enclosure simply because their capacities and overall sizes look similar. Before replacing MB31 cells with LF334 cells, check:

• Internal battery-box length, width and height
• Terminal spacing and terminal orientation
• Busbar hole position and busbar flexibility
• Cell compression plates and insulation clearances
• Cable routing, fuse or breaker position and service access
• Total pack weight and enclosure load rating

A dimensional drawing is more reliable than comparing product photos. If the battery box was designed around one specific cell model, ask the box supplier to confirm compatibility with the other model in writing.

Do you need a different BMS?

Both models can be used in a 16S LiFePO4 architecture, but that does not mean every existing BMS configuration is automatically correct. Confirm the following before commissioning the pack:

• 16S LiFePO4 support
• Charge and discharge voltage settings
• Continuous current rating and cable size
• Temperature-sensor placement and protection thresholds
• Balancing method and balancing current
• CAN or RS485 communication requirements for the inverter

The current rating of the BMS should be selected according to the inverter power, expected load, cable design and protection devices, not only according to the cell capacity.

Can cycle-life figures be compared directly?

Published cycle-life figures are only meaningful when the test conditions are also understood. The current Docan LF334 page lists 4,000 cycles to 80% state of health at 25 degrees C. EVE has publicly described MB31-based energy-storage products as providing 8,000 effective cycles, while the current Docan MB31 page also lists at least 8,000 cycles at 0.5C.

These numbers should not be compared as if they came from one identical test. Depth of discharge, charge and discharge rate, temperature, compression, end-of-life definition and rest periods can change the result. For a purchase decision, request the specification or test conditions for the exact batch being quoted.

Which cell is better for your project?

LF334 may be the better fit when:

• You want approximately 17.1kWh of nominal energy from one 16S pack.
• You are building a new enclosure around the LF334 dimensions.
• The listed M6 stud configuration matches your busbars and assembly method.
• You have confirmed current batch availability before ordering.

MB31 may be the better fit when:

• Your DIY box or busbar set is already designed for MB31 cells.
• You need a terminal configuration currently offered with the MB31 listing.
• Approximately 16.1kWh nominal energy is sufficient for the project.
• You prefer a cell already widely used in EVE energy-storage applications.

Frequently asked questions

Can I mix LF334 and MB31 cells in one 16S battery?

No. Avoid mixing different cell models, capacities, batches or states of health in one series pack. A 16S battery should use properly matched cells of the same model and compatible production batch.

Will 16 cells make a 51.2V battery?

Yes. Sixteen 3.2V LiFePO4 cells connected in series form a 51.2V nominal battery. The full-charge voltage depends on the charging strategy and BMS settings.

Is the higher-capacity LF334 automatically the better choice?

No. It provides more nominal energy, but enclosure fit, terminal layout, BMS settings, availability and total project cost may be more important than the capacity difference.

How can I confirm current USA warehouse availability?

Inventory and incoming shipment schedules can change. Before ordering, send the required model, quantity and delivery ZIP code to Jenny so the current availability and delivery option can be checked.

Check the current cells and delivery options

View the EVE LF334 334Ah USA listing or the EVE MB31 314Ah USA listing.

For a current quotation, please provide the cell model, required quantity, destination country and ZIP code.
